1、 Technical parameters:

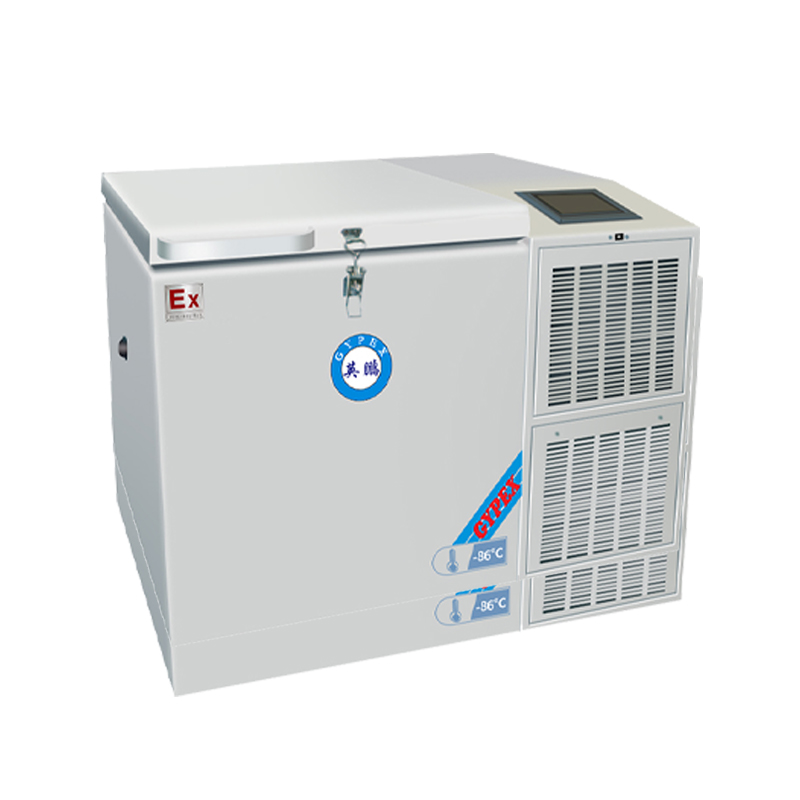

Category: Horizontal ultra-low temperature explosion-proof refrigerator

Brand: Yingpeng GYPEX

model: BL-400DW86W150

Capacity: 150 liters

Temperature range: -40~-86 ℃ adjustable

Power supply: 220V/50HZ

Power: 850

Net weight/gross weight: 199/217

Dimensions: 1250 * 850 * 970mm

Internal dimensions: 540 * 480 * 582mm

Explosion proof mark: Ex d e mb IIC T4 Gb

2、 Product advantages:

1. Safety control system:

1) Multiple fault alarms: high and low temperature alarm, power outage alarm, sensor fault alarm, condenser dirty alarm, power outage alarm, low battery level alarm, high ambient temperature alarm, door opening alarm and other series of safety alarm functions to ensure safe use. Alarm independent icon display, historical alarm viewing and export, door opening alarm history query and export function data can be saved for more than 15 years

2) Multiple alarm methods: sound buzzing alarm, independent alarm icon flashing alarm, remote alarm can be connected

3) Multiple protection functions: press startup delay protection, power-off interval protection, password protection, fault mode normal operation protection

4) Password protection is provided to prevent arbitrary adjustment of parameters

5) The power switch is equipped with dual circuit fuse overcurrent protection and a power on indicator light to ensure user safety

2. Humanized design:

1) Intelligent control system, LCD touch screen display

2) The temperature control accuracy is as high as 0.1 ℃. The temperature inside the box can be adjusted from -40 ℃ to 86 ℃, and the temperature control is uniform

3) Wide voltage band design: can adapt to operation under a wide voltage range of 198-254V

4) Equipped with temperature curve display, historical data viewing and export functions

5) Equipped with health indicators for device operation, providing a more intuitive understanding of device performance

3、 Scope of application:

1. This product is suitable for use in explosive environments such as petrochemicals, metallurgy, pharmaceuticals, textiles, food, biotechnology, pharmaceuticals, warehouses, aerospace engineering and laboratories, chemical warehouses, etc., where temperature control is required; Suitable for research institutes, electronic, chemical and other laboratories, blood stations, disease prevention and control. Used for storing plasma, biomaterials, vaccines, etc., and can also be used for low-temperature testing of electronic devices and special materials.

Hazardous gas sites in Zone 2.1 and Zone 2;

3. Explosive gas or vapor environments in groups T1-T4 of IIA, IIB, and IIC;

4. Environmental temperature:- 5 ℃~+43 ℃.
